Principle:
When the lamp beads emit light, there will be different directions of the light path, the cover with light-absorbing cloth absorbs the light in the direction of the dispersed light, we detect the degree of pin position, we need most of the light irradiation to the pins, so as to pull the contrast between the features and the background, reduce the background interference.
Feature:
Light source size and opening size can be customised according to the product
The light is parallel, most of the light shines on the pins, which reduces the interference of diffuse light, thus pulling the contrast with the background and reducing the background interference
Applications:
l suitable for capacitors, stamping parts, connectors and other products in the array of pin position degree detection
Small round product size measurement
★Application cases

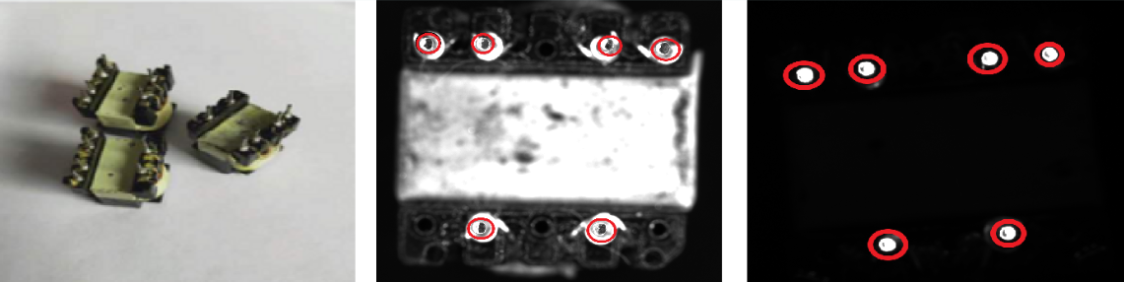

Product Picture General light source detection effect Dedicated light source detection effect
