Principle:
This is a light source using a double lens design to distinguish the traditional coaxial parallel light, in order to ensure uniformity and brightness at the same time size to do small internal design corner light path, great savings in the length of the space limitations, 120W lamp beads to meet the brightness requirements of the internal glass are all wrapped strip for protection, reducing the risk of glass breakage light source to do hollowing out the lightweight processing, not only to reduce the weight, but also aesthetically pleasing.
Features:
Can detect defects under the screen glass through the product surface
Magnify the effect of small deformation by means of striped structured light
The light source undergoes a special optical design to ensure uniformity and at the same time has a strong parallelism, so that the image sharpness is higher.
Applications:
OLED screen lamination detection of internal defects (bubbles, folds, deformation, water ripples, etc.)
Transparent panel underlay defect detection
Smooth object internal defects (non-surface)

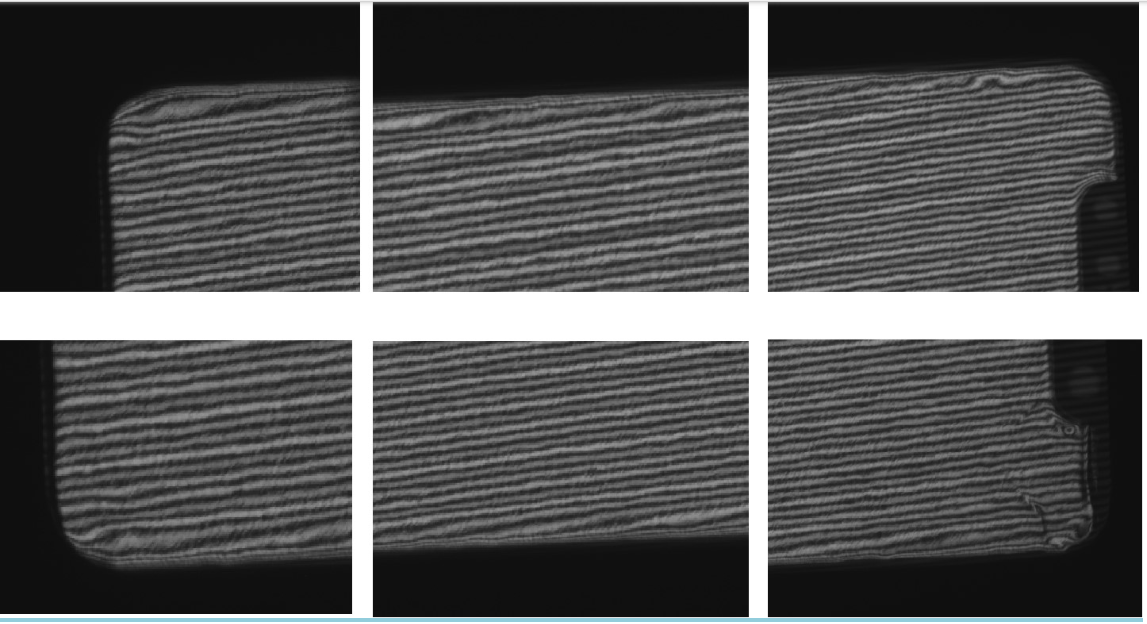

★Application case
