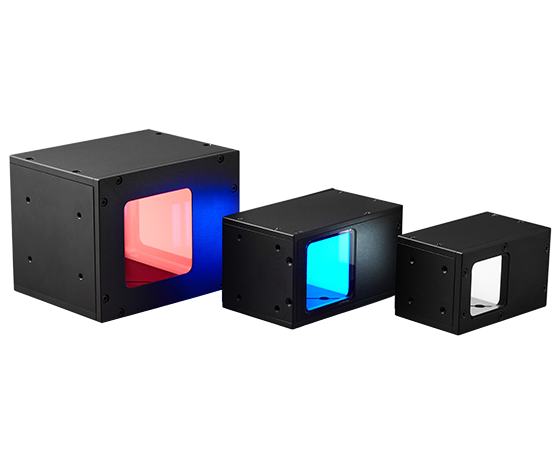

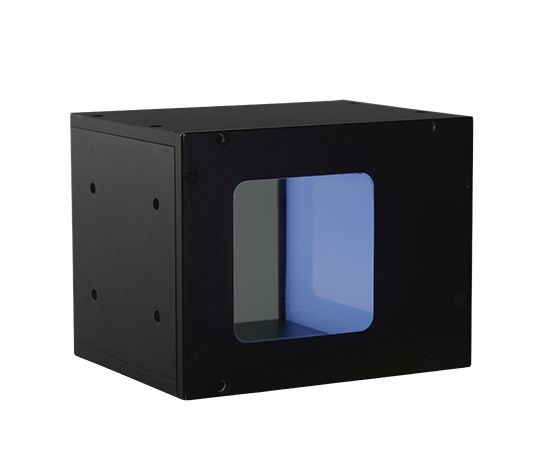

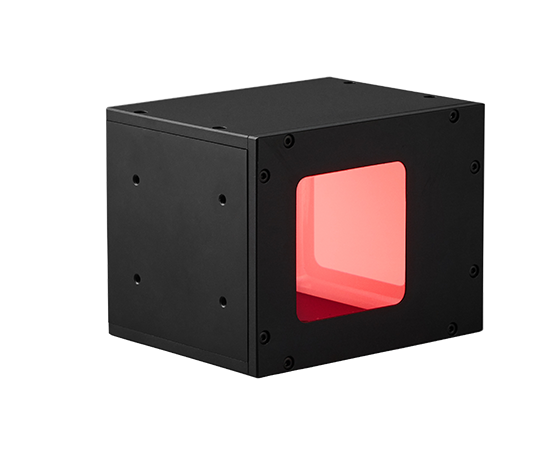

Coaxial Light Source Product Overview
High density LED arrays emit high intensity uniform light, which is transmitted through a specially coated semi-lens surface so that the reflected light on the workpiece and the CCD camera are on the same axis and re-imaging of the captured image is eliminated. This series of light sources has a very uniform light distribution and is suitable for scratch detection past smooth workpiece surfaces.
Coaxial light source application scope
1、Detection of laser marking on wafers.
2, detection of metal surfaces, bearings, beverage cans engraved characters.
3, detection of metal, glass plate printed on the two-dimensional code.
4, LCD screen defects.
Naming instructions
CC - 60 - R
CC-180130-R
① ② ③
Description: ① represents the dome light source. ② represents the outer diameter of the light source in mm. ③ Light source color: R, G, B, W, etc.
